Digging (a little bit) into KConfig and device tree

Understanding program and board configurations

In order to program a Zephyr RTOS application for a specific target device, you need to use different configuration tools: Kconfig and DTS. This codelab introduces these tools and explains the basic principles behind them. The goal is not to bring an in-depth understanding of all application and board configurations, but rather to enable you to configure an application for a board fully supported by the Zephyr RTOS ecosystem.

What you’ll build

  • How to configure an application and compile it using the different Zephyr Development Environment and Zephyr RTOS.
  • How to add specific application and board configuration parameters.

What you’ll learn

  • The basic principles behind Kconfig and DTS.
  • How to use some tools that help with the configuration.

What you’ll need

  • Zephyr Development Environment for developing and debugging C++ code snippets.
  • The getting started codelab is a prerequisite for this codelab.

Digging into Kconfig

As you learned earlier, Zephyr RTOS applications can be configured using the application configuration file, which is named “prf.conf” by default. This file contains the definition of the symbols used to configure the build process.

The symbols for which values are defined in the “prf.conf” file are declared in Kconfig files. Kconfig is a concept borrowed from the Linux kernel configuration system. It uses a hierarchy of configuration files that ultimately results in the declaration of a hierarchy of configuration options or symbols. The build system uses these symbols to include or exclude files from the build process. It also uses the symbols in the source code itself as symbols used by the precompiler.

With Zephyr RTOS, west uses Kconfig as part of the build process.

Visualizing the Configuration Options using menuconfig or guiconfig

To configure the options of a Zephyr RTOS application, the developer must navigate through the hierarchy of Kconfig files to understand the hierarchy of configuration symbols. This is a tedious task, and west provides an interactive Kconfig interface to facilitate this task. To run the interface for a specific application (here the “blinky” application), you will need to:

  • Run west build -b nrf5340dk/nrf5340/cpuapp blinky.
  • Run west build -t menuconfig or west build -t guiconfig. Both commands provide an interface that makes configuration much easier. With the use of these interfaces the understanding of each symbol and of the symbol hierarchy is made much easier.

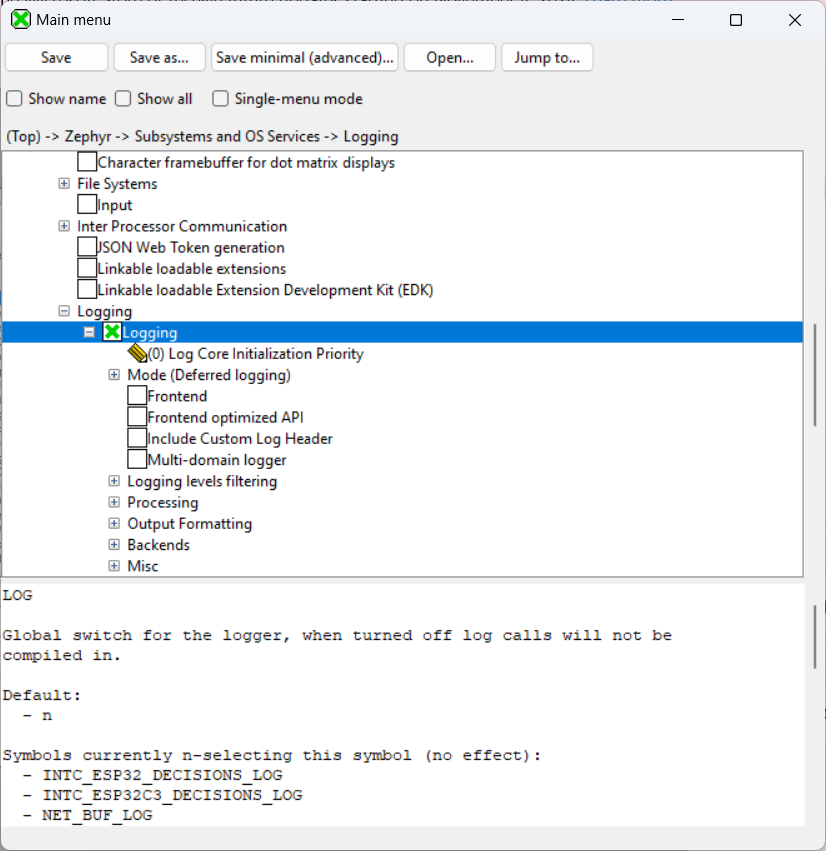

The guiconfig interface is illustrated below:

guiconfig interface

Figure 1: guiconfig interface

Learning Kconfig with an Example

To explain how Kconfig works in detail, a good example is the Zephyr RTOS logging subsystem that we learned how to use earlier. Part of the logging subsystem Kconfig definition is shown below:

zephyr/subsys/logging/Kconfig
menu "Logging"

config LOG
    bool "Logging"
    select PRINTK if USERSPACE
    help
      Global switch for the logger, when turned off log calls will not be
      compiled in.

if LOG

config LOG_CORE_INIT_PRIORITY
    int "Log Core Initialization Priority"
    range 0 99
    default 0

rsource "Kconfig.mode"
...

This definition can be understood as follows:

  • menu is the definition of the menu name displayed when using menuconfig or guiconfig, as shown in Figure 1.

  • config LOG is the definition of the LOG symbol. In the Kconfig nomenclature, it is a menu entry.

  • A menu entry can have a number of attributes. For the config LOG menu entry:

    • A type definition: The symbol is defined as a bool and an application can define the use of the symbol as CONFIG_LOG=y (to enable logging) or CONFIG_LOG=n (to disable logging).

    • A reverse dependency: select PRINTK if USERSPACE forces the value of the PRINTK symbol to the logical AND of the value of the menu symbol LOG and of the symbol USERSPACE. If both values are true, then PRINTK will be set to true.

    • help contains the explanation of the symbol as shown in Figure 1.

  • The Kconfig file above contains further menu items that are defined only if the value of the LOG menu item is true (using if LOG). config LOG_CORE_INIT_PRIORITY is one of these menu items.

  • The config LOG_CORE_INIT_PRIORITY menu item contains the following attributes:

    • A type definition int that defines the menu item to be an integer.
    • A range attribute that specifies acceptable values for the menu item.

    • A default attribute that specifies the default value if it is not specified in the application prj.conf file.

    • rsource "Kconfig.mode" is a Kconfig extension defined in the Kconfiglib. It tells the build system to include the file specified with a path relative to the Kconfig file.

More details on the Kconfig language can be found here. Details about the Kconfig extensions used by west can be found here.

How are Kconfig Definitions Used?

For a better understanding of the use of the configuration parameters, it is useful to have a look at the definition of the CONFIG_PRINTK symbol, which is also used in the logging subsystem. The declaration of the printk() function depends on the definition of the CONFIG_PRINTK, as shown in the source code of the Zephyr RTOS printk() function (simplified here):

zephyr/include/zephyr/sys/log.h
...
#ifdef CONFIG_PRINTK
void printk(const char *fmt, ...);
#else
static inline void printk(const char *fmt, ...)
{
    ARG_UNUSED(fmt);
}
#endif
...
If CONFIG_PRINTK is not defined, printk() will be replaced by a dummy function and any call to printk() will be removed by the compiler. To verify this behaviour, you can

  • Add a call to printk() in the main() function.
  • Add the option CONFIG_PRINTK=n in the prj.conf file.
  • Build the application again with the command west build -b nrf5340dk/nrf5340/cpuapp blinky --pristine.
  • Flash your board using the west flash command.

You would expect the printk() call not to print anything in the console, but even though printk() is disabled, the message is still displayed! Why is this happening? From the source code, the only possible explanation is that the CONFIG_PRINTK definition ended up with CONFIG_PRINTK=y, not as configured in our prj.conf file. The explanation lies in how the hierarchy of Kconfig files is combined to build the hierarchy of options.

How are Kconfig files combined?

To understand the printk() behaviour explained above, you can observe the following:

  • When building an application, west generates a number of output files. One of these is the file containing all the Kconfig settings (“build/zephyr/.config”). If you look for CONFIG_PRINTK in this file, you will see that it is defined as
    build/zephyr/.config
    ...
CONFIG_PRINTK=y
...
  • If you look at the console output while building the application, you will see a warning message:
    console
    warning: PRINTK (defined at subsys/debug/Kconfig:220) was assigned the value 'n' but got the value 'y'.

Both of these observations confirm that the CONFIG_PRINTK symbol was not set as expected from the prj.conf file. The reasons is two-fold:

  • In the Zephyr RTOS system, there are hundreds of Kconfig files (called fragments in the Zephyr RTOS nomenclature) that are combined at build time. The way the configuration options are finally built is explained in detail in the official Zephyr RTOS documentation and will not be repeated here. It is important to note that the prj.conf file is only a small part of how configuration parameters are built.
  • As explained earlier, Kconfig files contain menu items, each of which can have dependencies (using select or imply). These dependencies may enable some options that conflict with the options set at the application level.

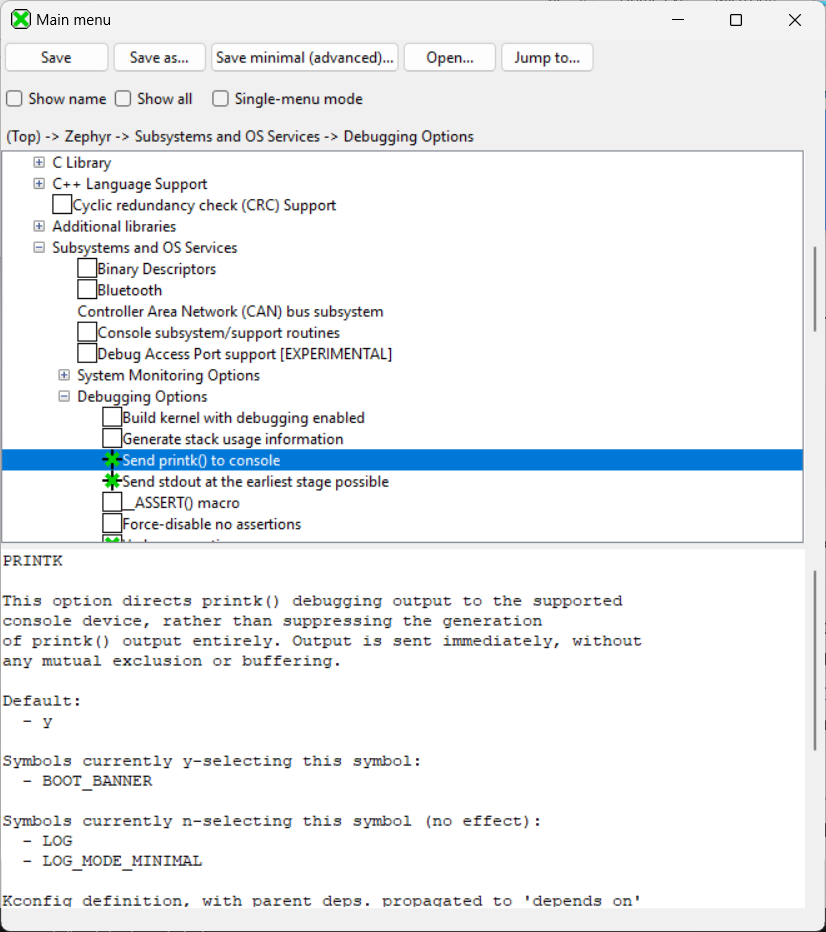

The easiest way to understand how the CONFIG_PRINTK option is finally set to CONFIG_PRINTK=y is to start the guiconfig by running west build -t guiconfig. If you do this, you will see that the PRINTK option is set to y, and that the reason for this is that the BOOT_BANNER symbol has a dependency on the PRINTK symbol, and that it selects it, as shown in Figure 2.

guiconfig interface

Figure 2: guiconfig interface for PRINTK option

This dependency is visible in the kernel Kconfig file

zephyr/kernel/Kconfig
...
config BOOT_BANNER
    bool "Boot banner"
    default y
    select PRINTK
    select EARLY_CONSOLE
    help
      This option outputs a banner to the console device during boot up.
The boot banner corresponds to the “*** Booting Zephyr OS build v4.1.0 ***” which is printed in the console at application startup. To display this message, the kernel uses printk() and therefore needs to set a dependency on the PRINTK option. If we really want to disable PRINTK, we need to add the following line to our prj.conf file.

blinky/prj.conf
CONFIG_BOOT_BANNER=n

Note that you may also need to disable all logging options to prevent any warnings at build time. If you make this change and reflash your board, you will see that the boot banner and the printk() message are no longer displayed.

Searching for Kconfig options

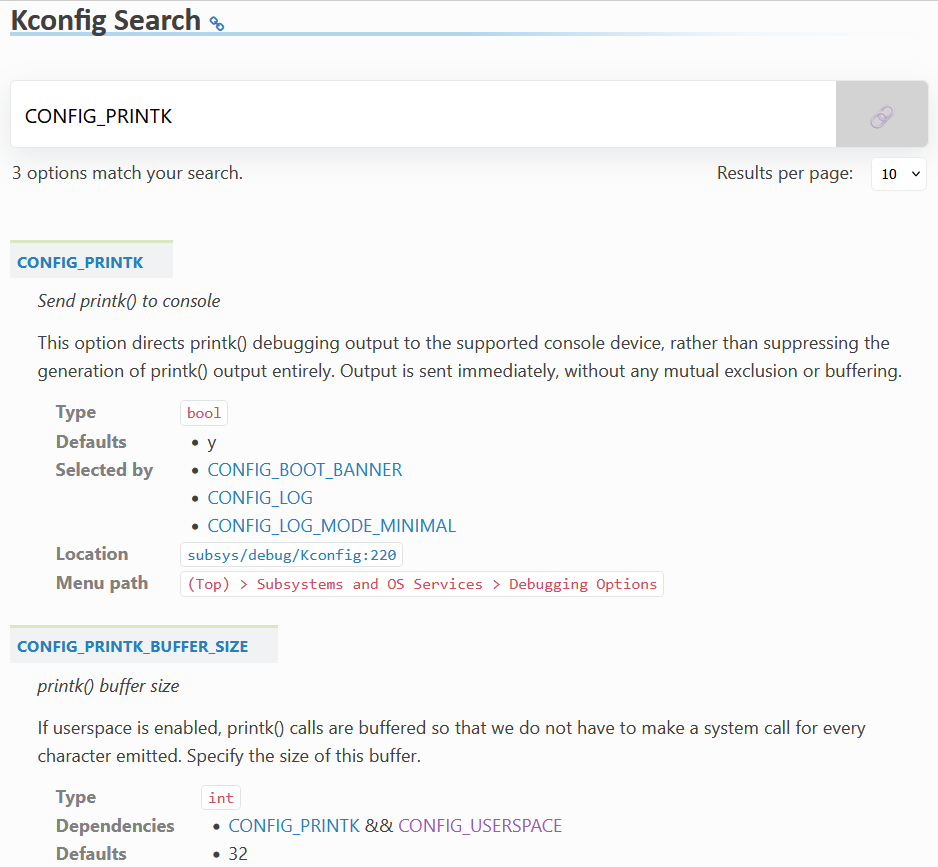

There exists another online tool provided by Zephyr RTOS to browse the available configuration options and understand their meaning, type and dependencies. If you search for CONFIG_PRINTK, then the search system will display the following result:

kconfig search

Figure 3: Kconfig search result for CONFIG_PRINTK option

Using Kconfig for Specifying Compiler Optimizations

When building any application written in C++, the compiler may apply different optimization rules such as -O1 or -Oz. Although this is possible, the compiler optimization options are usually not defined in the CMakeLists.txt file using the zephyr_library_compile_options definition. The preferred way to define different optimisation options and build types is to use alternative application configuration files.

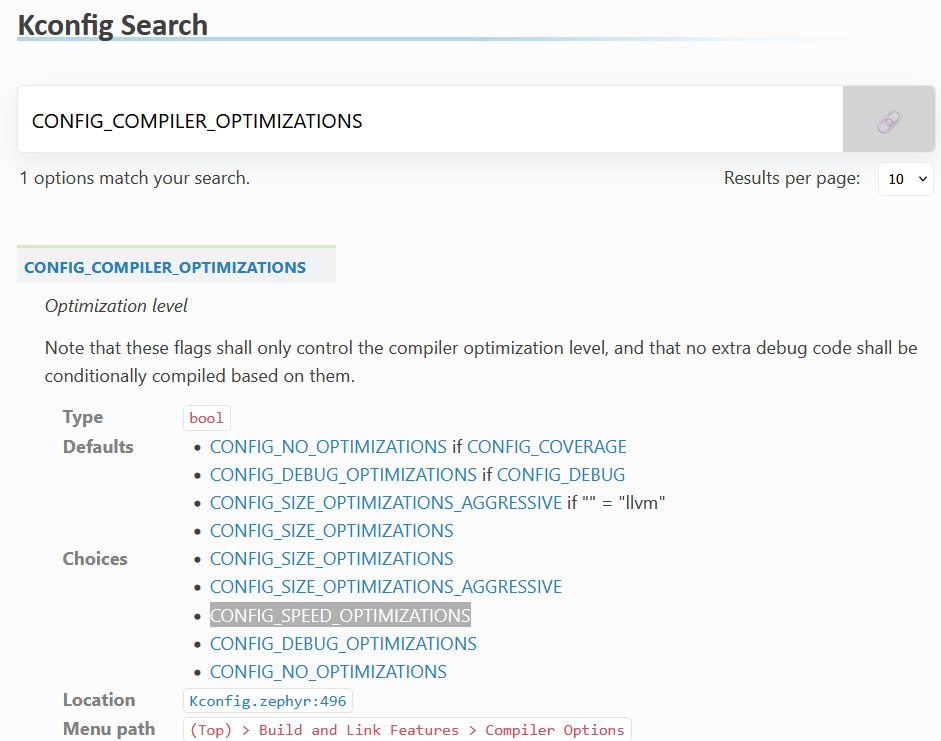

If you search for CONFIG_COMPILER_OPTIMIZATIONS on the Kconfig search tool, you will see the following output:

kconfig search

Figure 4: Kconfig search result for CONFIG_COMPILER_OPTIMIZATIONS option

This explains how the CONFIG_COMPILER_OPTIMIZATIONS option can be set and its dependencies. If you want to use a different compiler optimisation, such as a release build type, you can copy the existing prj.conf file, rename it and add the following configuration:

blinky/prj_release.conf
CONFIG_COMPILER_OPTIMIZATIONS=CONFIG_SPEED_OPTIMIZATIONS

You can then start another build by specifying the alternate configuration file with the command west build -b nrf5340dk/nrf5340/cpuapp blinky --pristine -- -DCONF_FILE=prj_release.conf. As explained in the official documentation, additional arguments can be passed to the CMake invocation performed by west build after a -- at the end of the west build command line.

Using Kconfig for Board Specific Configuration

As explained in the getting started codelab, it is also possible to define configuration parameters that are specific to a board. To do so, add a “{board}.conf” file to the application’s “boards” directory. For example, if you want to define configuration parameters that apply only to your nrf5340dk/nrf5340/cpuapp device, you may add a “nrf5340dk/nrf5340/cpuapp.conf” to the “boards” folder. When building the application, you should see an output similar to the following in the terminal:

terminal
Parsing D:/aes/blinky/Kconfig
Loaded configuration 'D:/aes/deps/zephyr/boards/nordic/nrf5340dk/nrf5340dk_nrf5340_cpuapp_defconfig'
Merged configuration 'D:/aes/blinky/prj.conf'
Merged configuration 'D:/aes/blinky/boards/nrf5340dk_nrf5340_cpuapp.conf'
Configuration saved to 'D:/aes/build/zephyr/.config'
Kconfig header saved to 'D:/aes/build/zephyr/include/generated/zephyr/autoconf.h'
This outputs shows that the board specific configuration file is merged with the other configuration file.

Device Tree Basics

devicetree is a data structure used in Linux and Zephyr RTOS to describe the hardware layout of a board.
It provides a hardware description that is separate from code, enabling reusable and portable drivers.

A devicetree describes:

  • SoC (System-on-Chip) peripherals.
  • Memory layout (Flash, RAM).
  • On-board sensors, LEDs, buttons, etc.
  • External components connected via I²C/SPI/UART.

A devicetree is described in so-called devicetree source (DTS) files. The Zephyr RTOS toolchain parses the DTS files at build time and generates C macros and defines to configure drivers and applications.

DTS Files

Zephyr RTOS uses the standard .dts and .dtsi file format. The key file types are:

  • .dts (DeviceTree Source)
    The main file describing the board’s hardware.
  • .dtsi (DeviceTree Include)
    Shared fragments included by other .dts files (like SoC-level definitions).
  • .overlay
    Application-specific modifications or additions to the board’s base .dts file.

When building an Zephyr RTOS for a specific board, the toolchain searches for the board specific DTS file. For our nrf5340dk/nrf5340/cpuapp device, this file is the “zephyr/boards/nordic/nrf5340dk/nrf5340dk_nrf5340_cpuapp.dts” file. This file includes other files from the following hierarchy:

  • “dts/arm/nordic/*.dtsi”: contains all “.dtsi” files included in Nordic board specific “.dts” files.
  • “dts/arm/.dtsi”: contains the SoC-level description for the board, here “armv8-m.dtsi”.

Node Structure in DTS Files

As the name indicates, a devicetree is a tree. The text format for specifying a devicetree is DTS.

An example of a DTS file is:

example.dts
   /dts-v1/;

   / {
           a-node {
                   subnode_nodelabel: a-sub-node {
                           foo = <3>;
                   };
           };
   };
The first line /dts-v1/; specifies the version of the DTS syntax that is used. The remaining of the file specifies a tree/hierarchy of nodes. In this example, the hierarchy is:

  • a root node specified by ‘/’.
  • a node named a-node, child of the root node.
  • a node named a-sub-node, child of the a-node node.

It is important to note the following:

  • node labels can be assigned to nodes, as shown with subnode_nodelabel in the example. Labels can be used for referring to the node elsewhere in the DTS file.
  • Each devicetree node has a path that identifies its location in the tree, similarly to file system paths. In our example, the full path to the a-sub-node node is “/a-node/a-sub-node”.
  • Each node in the tree can have properties, expressed as name/value pairs. The value can be any sequence of bytes or an array of so-called cells. In the example above, the a-sub-node node has a property named foo, whose value is a cell with value 3.

Nodes Reflecting Hardware

In a DTS file, each node represents a hardware component. For example, let us consider a board with I2C peripherals. The DTS file for this board should thus contain an I2C controller and I2C peripherals, as illustrated below:

example.dts
  soc {
      i2c1@40003000 {
          compatible = "nordic,nrf-twim";
          reg = <0x40003000 0x1000>;
          status = "okay";
          clock-frequency = <100000>;

          apds9960@39 {
              compatible = "avago,apds9960";
              reg = <0x39>;
          };
      }
  }

The fields in this example can be explained as follows:

  • soc represents the system on chip used on the board.
  • i2c@40003000 represents the I2C controller (with unit address 40003000)
  • compatible represents the name of the hardware that the node represents in the format “vendor,device”, here “nordic,nrf-twim”.
  • reg represents the information used to address the device, as a sequence of “address,length” pairs. It is device specific.
  • status represents whether the device is “okay”, “disabled” or in any other status.
  • clock-frequency represents a custom property, here used for the I2C controller.
  • apds9960@39represents an I2C peripheral attached to this I2C controller.

In the context of this lecture, we do not address the concept of unit addresses in more details.

Binding Files

Each compatible string must have a binding file describing its properties.
Bindings are found under “zephyr/dts/bindings”. They are written in YAML format and include:

  • The required and optional properties.
  • The Property types.
  • Child node requirements.

The binding file related to the I2C controller in the example above is shown here (in a simplified version):

zephyr/dts/bindings/i2c/nordic,nrf-twim.yaml
compatible: "nordic,nrf-twim"

properties:
  reg:
    required: true

  clock-frequency:
    type: int
    default: 100000

How Zephyr Uses DTS

The following happens during the build process:

  1. The devicetree is compiled using dtc (DeviceTree Compiler) into a .dtb (DeeviceTree blob). dtc is used only for validating that no error and no warning are present in the .dts files.
  2. Then, Zephyr converts .dts files to devicetree_generated.h using gen_defines.py. The file devicetree_generated.h contains a bunch of macros used to access hardware. The file is available in build/zephyr/include/generated/zephyr/devicetree_generated.h
  3. Application and driver code use devicetree_generated.h macros to access configuration.

An example of generated macros is given below:

build/zephyr/include/generated/zephyr/devicetree_generated.h
#define DT_NODELABEL_i2c1 0x...        /* Reference to node */
#define DT_PROP(DT_NODELABEL_i2c1, clock_frequency) 100000

Using DeviceTree in a Zephyr RTOS Application

The basic principles for using a hardware component in a Zephyr RTOS application are the following:

  • Referencing Nodes in code is done as follows:

    #include <zephyr/devicetree.h>

#define I2C0_NODE DT_NODELABEL(i2c1)

const struct device *i2c1_dev = DEVICE_DT_GET(I2C1_NODE);

  • Checking device available at execution time is implemented as follows:

    if (!device_is_ready(i2c1_dev)) {
    return;
}

  • Accessing device properties is implemented as follows:

    uint32_t freq = DT_PROP(I2C1_NODE, clock_frequency);

Kconfig and DTS in Practice

Now, to experiment with the Kconfig and DTS concepts introduced in this codelab, we will create a new application that uses the BME280 sensor included in your development kit. The datasheet for this sensor is available here.

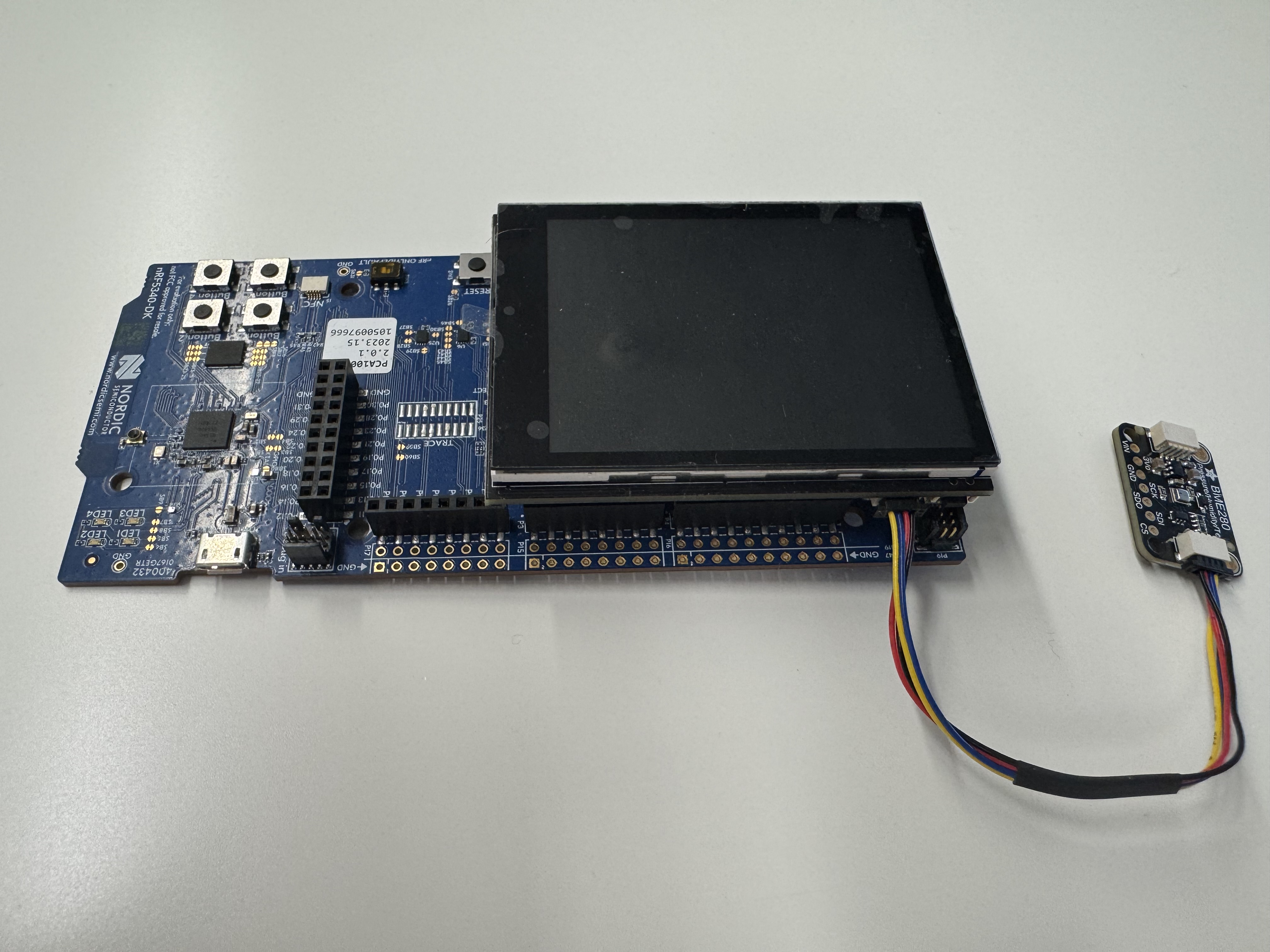

In order to use an external sensor with the board, you must override both the configuration and the DTS so that the software can access the sensor properly. Zephyr RTOS provides a driver for the BME280 sensor, located in “zephyr/drivers/sensor/bosch/bme280/”. Its corresponding devicetree bindings can be found in “zephyr/dts/bindings/sensor/bosch,bme280-i2c.yaml”.

To create the application, you must:

  • Create a new directory called sensor_bme280 in your workspace.
  • Using the Getting started Codelab as a reference, set up your application inside this directory. Alternatively, you can duplicate the Blinky application and modify it as needed.
  • In sensor_bme280/src/main.cpp, paste the following code:
    sensor_bme280/src/main.cpp
    // stl
#include <chrono>

// zpp-lib
#include "zpp_include/thread.hpp"
#include "zpp_include/this_thread.hpp"
#include "zpp_include/digital_out.hpp"

// zephyr
#include <zephyr/logging/log.h>
#include <zephyr/drivers/sensor.h>

LOG_MODULE_REGISTER(sensor_bm280, CONFIG_APP_LOG_LEVEL);

#define BME280_NODE DT_INST(0, bosch_bme280)

void read_sensor() {

  const struct device* _sensorDevice = DEVICE_DT_GET(DT_INST(0, bosch_bme280));
  using namespace std::literals;
  static std::chrono::milliseconds readInterval = 1000ms;

  if (!device_is_ready(_sensorDevice)){
    LOG_ERR("Device %s not found", _sensorDevice->name);
    return;
  }

  struct sensor_value temperature_sv, humidity_sv, pressure_sv;

  while (true) {
    sensor_sample_fetch(_sensorDevice);

    sensor_channel_get(_sensorDevice, SENSOR_CHAN_AMBIENT_TEMP, &temperature_sv);
    sensor_channel_get(_sensorDevice, SENSOR_CHAN_HUMIDITY, &humidity_sv);
    sensor_channel_get(_sensorDevice, SENSOR_CHAN_PRESS, &pressure_sv);

    LOG_INF("T=%.2f [deg C] P=%.2f [kPa] H=%.1f [%%]",
                sensor_value_to_double(&temperature_sv),
                sensor_value_to_double(&pressure_sv),
                sensor_value_to_double(&humidity_sv));

    zpp_lib::ThisThread::sleep_for(readInterval);
  }
}

int main(void) {
  LOG_DBG("Running on board %s", CONFIG_BOARD_TARGET);

  zpp_lib::Thread thread(zpp_lib::PreemptableThreadPriority::PriorityNormal, "Blinky");
    auto res = thread.start(read_sensor);
  if (! res) {
    return -1;
  }

  res = thread.join();
  if (! res) {
    LOG_ERR("Could not join thread: %d", (int) res.error());
    return -1;
  }

  return 0;
}
  • Connect the BME280 sensor as illustrated below - be careful and plug the connector in the correct sense:

hardware connections

Figure 5: How to connect the screen and the sensor to the board
  • Build this application with the west build sensor_bme280 --pristine command. You should get errors similar to these ones:
error: '__device_dts_ord_DT_N_INST_0_bosch_bme280_ORD' was not declared in this scope
   96 | #define DEVICE_NAME_GET(dev_id) _CONCAT(__device_, dev_id)

This behavior is expected, because the build system has not yet been told how or where to find the BME280 sensor. The macro __device_dts_ord_DT_N_INST_0_bosch_bme280_ORD is generated only when the board’s DTS file defines a BME280 node. This is not the case by default.

In more details, the code to access the sensor is the one below:

sensor_bme280/src/main.cpp
  const struct device* _sensorDevice = DEVICE_DT_GET(DT_INST(0, bosch_bme280));
and since there is no BME280 entry in the DTS file yet, the macro doesn’t exist, and the compilation fails.

Fix the devicetree Definition

As mentionned earlier, Zephyr RTOS applications can add specific hardware that is not defined in the board specific DTS file. This is accomplished by adding a board specific overlay file.

The steps for adding the BME280 sensor to a Zephyr RTOS application are as follows:

  • In the “sensor_bme280” folder, create a “boards” folder. Add a file named “nrf5340dk_nrf5340_cpuapp.overlay” in this folder.
  • Knowing that the BME280 sensor is connected to the p1.02 and p1.03 pins, check whether the I2C1 controller is using these pins. Open the “zephyr/boards/nordic/nrf5340dk/nrf5340_cpuapp_common-pinctrl.dtsi” and check the following definitions:

deps/zephyr/boards/nordic/nrf5340dk/nrf5340_cpuapp_common-pinctrl.dtsi
&pinctrl {
  ..
    i2c1_default: i2c1_default {
        group1 {
            psels = <NRF_PSEL(TWIM_SDA, 1, 2)>,
                    <NRF_PSEL(TWIM_SCL, 1, 3)>;
        };
    };

    i2c1_sleep: i2c1_sleep {
        group1 {
            psels = <NRF_PSEL(TWIM_SDA, 1, 2)>,
                    <NRF_PSEL(TWIM_SCL, 1, 3)>;
            low-power-enable;
        };
    };
  ...
};
The controller is using to the expected pins and we do not need to modify this configuration. However, there is no way yet to understand from the DTS files that the BME280 sensor is attached to the I2C1 controller. This is done in the next step.

  • In the “sensor_bme280/boards/nrf5340dk_nrf5340_cpuapp.overlay”, override the i2c1 node as follows:
sensor_bme280/boards/nrf5340dk_nrf5340_cpuapp.overlay
&i2c1 {
    status = "okay";
    bme280@77 {
        compatible = "bosch,bme280";
        reg = <0x77>;
    };
};

Fix the Configuration

Finally, update the application configuration to enable support for I2C, SENSOR, and BME280, and to allow floating-point formatting when printing measurements to the console.

This can be done by adding the following lines to the prj.conf file:

sensor_bme280/prj.conf
# Enable floating point formatting when printing
CONFIG_PICOLIBC=y
CONFIG_PICOLIBC_IO_FLOAT=y

# Sensor
CONFIG_I2C=y
CONFIG_SENSOR=y
CONFIG_BME280=y

At this point, if you build and flash your application using west build sensor_bme280 --pristine followed by west flash, you should see the following in the serial console:

Console
*** Booting Zephyr OS build v4.2.0 ***
[00:00:00.266,693] <dbg> sensor_bm280: main: Running on board nrf5340dk/nrf5340/cpuapp
[00:00:00.338,745] <inf> sensor_bm280: T=24.70 [deg C] P=95.37 [kPa] H=61.8 [%]
[00:00:01.359,161] <inf> sensor_bm280: T=24.70 [deg C] P=95.37 [kPa] H=61.8 [%]
[00:00:02.383,331] <inf> sensor_bm280: T=24.70 [deg C] P=95.37 [kPa] H=62.2 [%]
[00:00:03.403,808] <inf> sensor_bm280: T=24.70 [deg C] P=95.37 [kPa] H=62.2 [%]
[00:00:04.427,978] <inf> sensor_bm280: T=24.70 [deg C] P=95.37 [kPa] H=62.3 [%]

Wrap-Up

By the end of this codelab, you should have completed the following steps:

  • Understand what Kconfig is used for and how you can define application specific configuration parameters.
  • Understand what DTS is used for and how you can add a specific hardware to your Zephyr RTOS application.
  • You can build the sensor_bme280 application and see the sensor values in the console.
